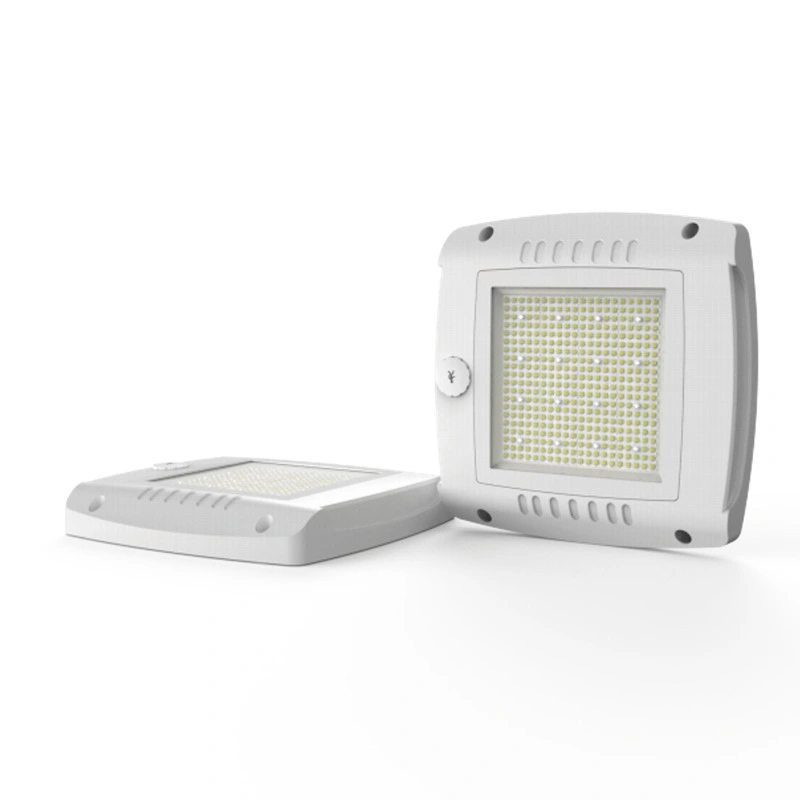

CP02-Series LED Canopy Light for Gas Stations & Low Bay Lighting 1

CP02-Series LED Canopy Light for Gas Stations & Low Bay Lighting 2

CP02-Series LED Canopy Light for Gas Stations & Low Bay Lighting 3

CP02-Series LED Canopy Light for Gas Stations & Low Bay Lighting 4

CP02-Series LED Canopy Light for Gas Stations & Low Bay Lighting

Name: CP02-Series LED Canopy Light for Gas Stations & Low Bay Lighting
Uploaded: 2025-12-31T00:04:44+08:00
Description: CP02 is multiple installations canopy light (Gas Station Light), comes with superb efficacy up to 150lm/w. Ideal lighting solution for safer and more appealing gas stations and low bay general lighting.

CP02 is multiple installations canopy light (Gas Station Light), comes with superb efficacy up to 150lm/w. Ideal lighting solution for safer and more appealing gas stations and low bay general lighting.

Key Advantages

✅ Robust Protection – IP66 dust & water resistance, IK08 impact resistance

✅ Flexible Optics – Available in 60°, 90°, and 120° beam angles

✅ Smart Ready – Optional microwave motion sensor for automatic dimming and control

✅ Long Lifespan – L90B10 > 100,000 hours, switching cycles > 100,000 times

✅ Multiple CCT Options – 3000K / 4000K / 5000K / 5700K / 6500K

Inquiry

Write a Review

Product Characteristics

DIM

1-10V Dimming

IP65

Ingress Protection Rating

IK09

Impact Rating

100,000hrs

Expected Lifetime

5yrs

Warranty

Product Technical Specifications

Model No.	CP02-75	CP02-100	CP02-120	CP02-150
Power Consumption	75W	100W	120W	150W
Input Voltage	120-277V \| 50/60Hz
Power Efficiency	≥93%
Efficacy	150lm/W, 130lm/W
Surge Protection Options (kv)	6KV-Line-Line / 6KV-Line-Earth
Control Protocol(s)	1-10V, DALI2 (optional)
Sensor	Motion Sensor (optional)
Beam Angle	60°/90°/120°
LED Color Temperature (CCT)	3000K / 4000K / 5000K / 5700K / 6500K
Color Rendering Index (CRI)	CRI>70 standard / CRI>80 optional
Operating Temperature	-30°C to +45°C
Lifetime of The LEDs @ TA 25°C	L70B10 > 100,000h L80B10 > 50,000h L90B10 > 30,000h
Switching Cycles	>100,000 times
Protection Rating	IP66, IK08
Warranty	5 years

Product Characteristics

Tempered glass with 120° beam or optional frosted glass; PC lenses available in 90° and 60°. Features high-efficiency SMD3030 LEDs for durable and efficient lighting.

Can Be Equipped With Sensors

Get more energy saving with a smart Microwave Motion Sensor

Screen Display,Memory & Apply Function, Optional Scenes
