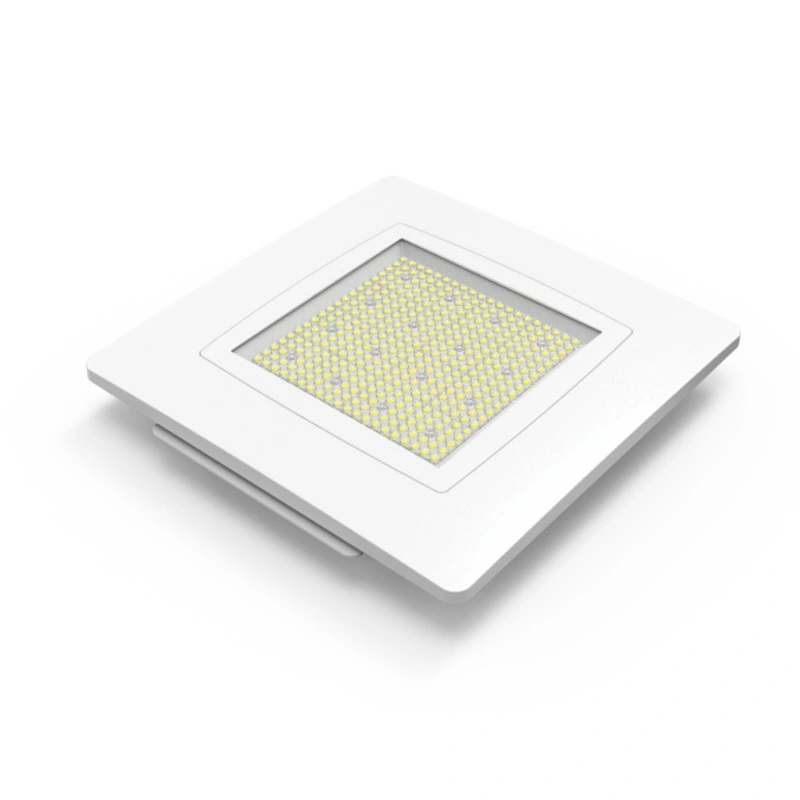

LED Canopy Light CP01 Series IP66 Gas Station Lighting 150lm/W, Dimmable 1

LED Canopy Light CP01 Series IP66 Gas Station Lighting 150lm/W, Dimmable 2

LED Canopy Light CP01 Series IP66 Gas Station Lighting 150lm/W, Dimmable 3

LED Canopy Light CP01 Series IP66 Gas Station Lighting 150lm/W, Dimmable 4

LED Canopy Light CP01 Series IP66 Gas Station Lighting 150lm/W, Dimmable 5

LED Canopy Light CP01 Series IP66 Gas Station Lighting 150lm/W, Dimmable

The CP01-Series LED Canopy Light delivers high-efficiency lighting with efficacy up to 150 lm/W, designed for gas stations and low bay applications. Featuring multiple beam angles (60°/90°/120°), optional tempered or frosted glass, and compatibility with microwave motion sensors, it ensures energy savings, durability, and adaptable illumination. Rated IP66 and IK08, it comes with a 5-year warranty for reliable long-term performance.

Key Advantages:
✅ High Efficacy – Up to 150 lm/W for energy-saving performance
✅ Multiple Optics – 60°, 90°, and 120° beam angles available
✅ Durable Design – IP66 waterproof, IK08 impact resistant
✅ Smart Sensor Ready – Optional microwave motion sensor for auto control

Inquiry

Write a Review

Product Characteristics

DIM

1-10V Dimming

IP65

Ingress Protection Rating

IK09

Impact Rating

100,000hrs

Expected Lifetime

5yrs

Warranty

Product Technical Specifications

Model No.	CP01-75	CP01-100	CP01-120	CP01-150
Power Consumption	75W	100W	120W	150W
Input Voltage	120-277V \| 50/60Hz
Power Efficiency	≥93%
Efficacy	150lm/W, 130lm/W
Surge Protection Options (kv)	6KV-Line-Line / 6KV-Line-Earth
Control Protocol(s)	1-10V, DALI2 (optional)
Sensor	Motion Sensor (optional)
Beam Angle	60° / 90° / 120°
LED Color Temperature (CCT)	3000K / 4000K / 5000K / 5700K / 6500K
Color Rendering Index (CRI)	CRI>70 standard / CRI>80 optional
Operating Temperature	-30°C to + 45°C
Lifetime of The LEDs @ TA 25°C	L70B10 > 100,000h L80B10 > 50,000h L90B10 > 30,000h
Switching Cycles	>100,000 times
Protection Rating	IP66 , IK08
Warranty	5 years
