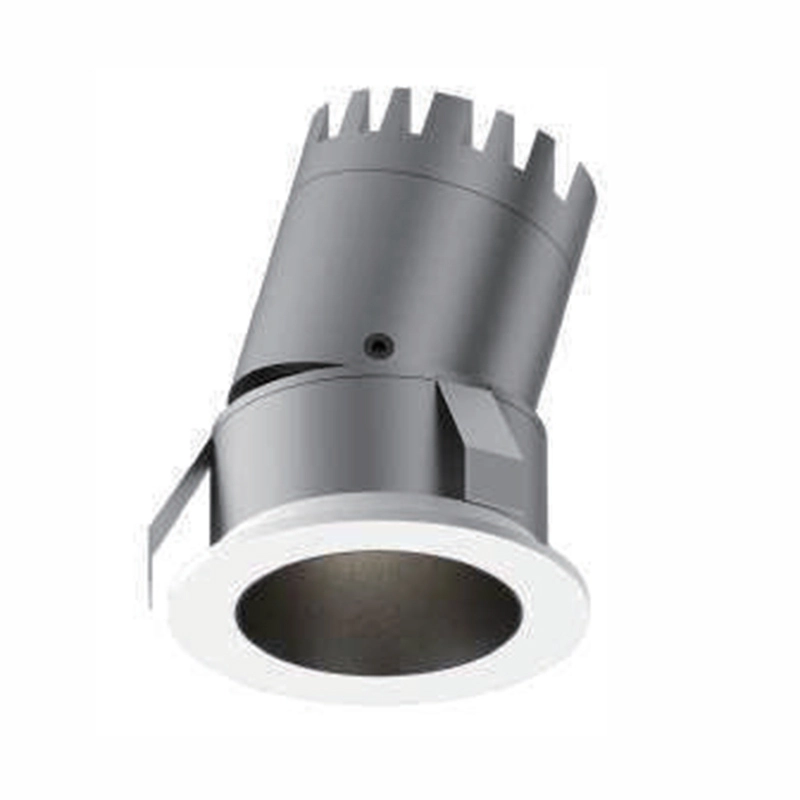

3W-9W Mini Spot Light Stars Series Low UGR Recessed Spotlights for Display Lighting
The Mini Spot Light Stars series offers ultra-compact, low-glare recessed spotlights designed for precision accent and display lighting in high-end commercial and hospitality settings. Ideal for creating clean, focused illumination in showcases, cabinets, and architectural details.
Elegant Mini Spotlight Application
Hotel front eaves
Cabinet
Restaurant
Jewelry display
Elegant Mini Spotlight Application
Hotel front eaves
Cabinet
Restaurant
Jewelry display
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
LFL1007 LFL1008 LFL1009 LFL1010
LFL1011 LFL1012 LFL1013
LFL1007 LFL1008 LFL1009 LFL1010
| Model No | Wattage | LED Source | UGR | CRI | Efficacy | CCT | Input Voltage | Cut out | Driver | Size | Beam Angle |
| LFL1007 | 3W | CREE3535 | <10 | ≥90 | 60lm/w | 3000/4000/5000K | AC220-240V | Φ30 | XTIAN | 37*40 | 15/25/40° |
| LFL1008 | 3W | CREE3535 | <10 | ≥90 | 60lm/w | 3000/4000/5000K | AC220-240V | Φ40 | XTIAN | 45*50 | 15/25/40° |
| LFL1009 | 7W | Bridgelux/CREE0 | <10 | ≥90 | 60lm/w | 3000/4000/5000K | AC220-240V | Φ50 | Lifud/eaglerise | 57*65 | 15/25/40° |
| LFL1010 | 9W | Bridgelux/CREE | <10 | ≥90 | 60lm/w | 3000/4000/5000K | AC220-240V | Φ60 | Lifud/eaglerise | 69*80 | 15/25/40° |
LFL1011 LFL1012 LFL1013
| Model No | Wattage | LED Source | UGR | CRI | Efficacy | CCT | Input Voltage | Cut out | Driver | Size | Beam Angle |
| LFL1011 | 3W | CREE3535 | <10 | ≥90 | 60lm/w | 3000/4000/5000K | AC220-240V | Φ40 | XTIAN | 45*50 | 15/25/40° |
| LFL1012 | 5/7W | Bridgelux/CREE | <10 | ≥90 | 60lm/w | 3000/4000/5000K | AC220-240V | Φ50 | Lifud/eaglerise | 57*65 | 15/25/40° |
| LFL1013 | 9W | Bridgelux/CREE | <10 | ≥90 | 60lm/w | 3000/4000/5000K | AC220-240V | Φ60 | Lifud/eaglerise | 69*80 | 15/25/40° |
Technical Details
Aluminium die casting
Material
Lens
Optic
Lifud / Eaglerise / Philips / OSRAM / TRIDONIC
Driver
Silicon controlled dimmer / 1–10V / DALI
Control
Bridgelux / OSRAM / CREE
Light source
AC220–240V
Input voltage
Light Distribution
