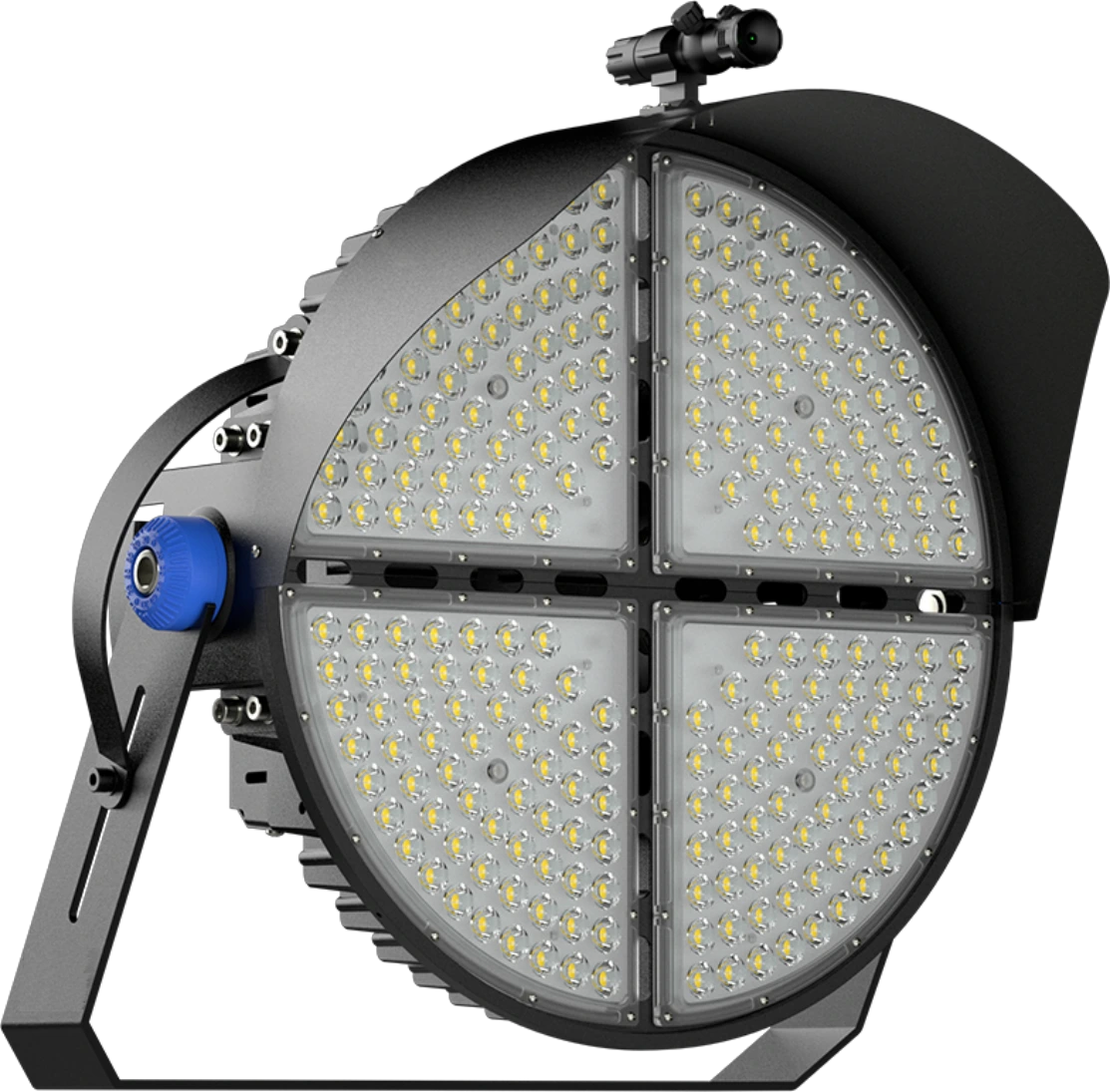

STMX Sports Lighting Product Overview
APPLICATIONS: Outdoor Sports Arenas
The Sports Light Gen 1 Series sets a new standard of technology for professional outdoor sport lighting.
OPTIONS
Performance Series
| Model Series | Power (W) | Luminous Flux (LM) | Dimensions (mm) | Net Weight (KG) |
| STMX400 | 400W | 68,000 | 592*490*168 | 14KG |
| STMX500 | 500W | 80,000 | 592*490*168 | 14KG |
| STMX1000 | 1000W | 150,000 | 697*592*168 | 24KG |
| STMX1200 | 1200W | 192,000 | 831*724*180 | 43KG |
| STMX1600 | 1600W | 240,000 | 831*724*180 | 47KG |
Ordering Guide
Example:STMX1600-U-QW-B-10
| Luminaire Type | Description | Options |
| STMX | Sports Light | STMX Sports Light |
| 1600 | Wattage/Lumen Output | 1600W, 1200W, 1000W, 800W, 600W, 500W, 400W |
| U | Voltage | U=100-277V, M=100-347V, HV=277-480V |
| QW | CCT (Correlated Color Temperature) | NW (4000K), QW (5000K), MW (5700K) |
| B | Finish | B=Black |
| 10 | Beam Angle | 10=10°, B=30°, G=60° |
Light DIMENSIONS
SPECIFICATIONS
High Lumen LED Stadium Lighting STMX Series,Polyester Powder finish for superior corrosion resistance and maximum durability. Mounting bracket is included for a wide variety of applications. Custom-engineered optics direct light precisely while reducing glare.
Multi-scenario Adaptability
LED Stadium Light STMX Series suitable for various indoor and outdoor sports venues such as basketball, badminton, football, and golf courses, providing professional-grade lighting experience.
Custom Beam Angle (Beam Angle)
⏸10° Narrow Beam:Suitable for long-distance projection, such as football and baseball fields.
⏸30° Medium Beam:Suitable for medium-distance projection, such as tennis and volleyball courts.
⏸30° Medium Beam:Suitable for medium-distance projection, such as tennis and volleyball courts.
