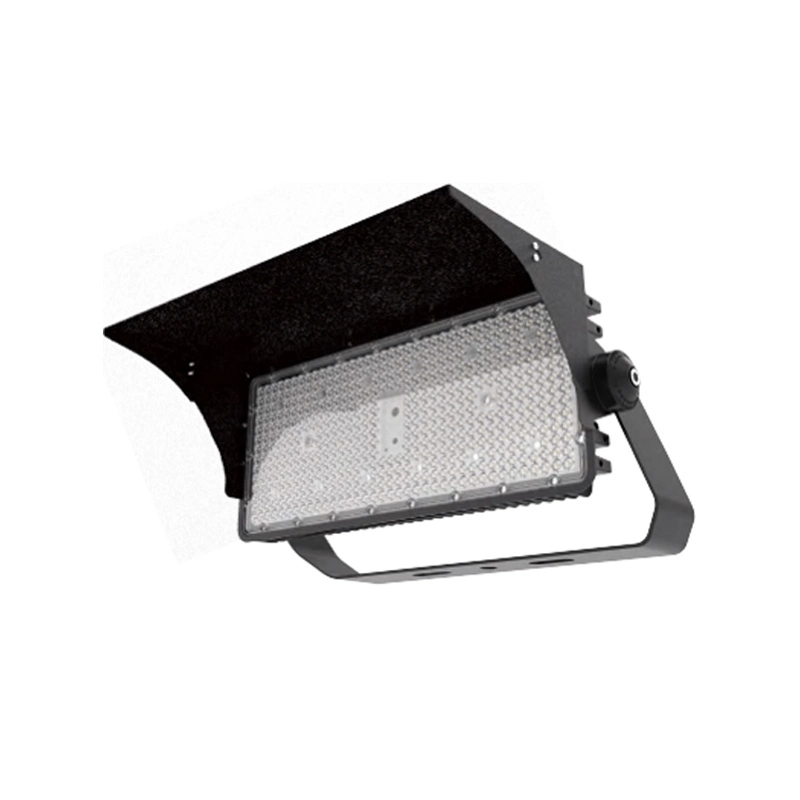

FL06 Series LED Sports Light High Power (500-1500W) with Rotatable Hood
The FL06 Series is a modular, high-power LED sports light for professional venues. Available in 500W, 1000W, and 1500W, it features a rotatable lens hood (0-35°) for precise beam control to reduce glare. Its remote driver design simplifies maintenance, making it a durable and efficient choice for stadiums and courts.
Core Product Advantages
- Protection Rating: IP66 (Completely dustproof, withstands powerful water jets)
- Shock Resistance Rating: IK10 (Highest rating, withstands 20 Joules of impact)
- Expected Service Life: 50,000 hours
- Warranty Period: 5 years
Our advantages
Luminaire Net Weight/kg:12.5kg±0.2kg
Luminaire Net Weight/kg:23.5kg±0.2kg
Luminaire Net Weight/kg:33.0kg±0.2kg
Product Technical Specifications
| Model No. | FL06-500 | FL06-1000 | FL06-1500 |
|---|---|---|---|
| Power Consumption | 500W | 1000W | 1500W |
| Input Voltage | 200-240V | 50/60Hz | ||
| Power Efficiency | ≥90% | ||
| Efficacy | 160-150lm/W | ||
| Surge Protection Options (kv) | 20KV-Line-Line / 20KV-Line-Earth | ||
| Beam Angle | 15°/ 30°/ 45°/ 60°/ 90° 110X25°/110X40° |
||
| LED Color Temperature (CCT) | 3000K/ 4000K/ 5000K/ 5700K/ 6500K | ||
| Color Rendering Index (CRI) | CRI>70 standard / CRI>80 optional | ||
| Operating Temperature | -30°C to + 35°C | ||
| Lifetime of The LEDs @ TA 25°C | L70B10 > 100,000h L80B10 > 50,000h L90B10 > 30,000h |
||
| Switching Cycles | >100,000 times | ||
| Protection Rating | IP66, IK09 | ||
| Warranty | 5 years | ||
Product Line Art
Product Details
Expandable Due to Modual Design
Remote Driver Gear for Easy Maintenance
Rotatable Lens Hood
Precise light control, suitable for professional courses, effective control of light pollution.
Lens Hood
The shade cap with orange surface can block out the light, diffuse reflection, and illuminate uniformly.
Scale Weight Rotating Disk
By gravity, the object rotates and drives the scale disk. The direction indicated by the pointer is unchanged. The rotation angle is the corresponding degree pointed by the pointer to the scale disk.
Labor-Saving Handle
On-site installation fulcrum; The curved handle is easy to install and will not hurt the hand.
Laser Aiming Devices
The Laser Aiming Device gives you precision control in angling
Cable Protection
Protect the wire from bird's pecking.
20KV
Keep your equipment safe from lightning strikes and other surges with our 20kV SPD. Long-lasting and easy to install.
Aiming Device
Make installation easier and more accurate.
Light Pollution Control
Focused Light: Narrow Angle, High Efficiency
LFL HiMast – Amazing lighting just for you. Our special Narrow Beam Angle & High Efficiency tech means light goes directly where you need it. No more extra light going where it shouldn't. It's smart, bright light that's just perfect. Use it anywhere, for big areas or small places. Get it smart with Goldenlux.Make spaces bright, the easy way.
