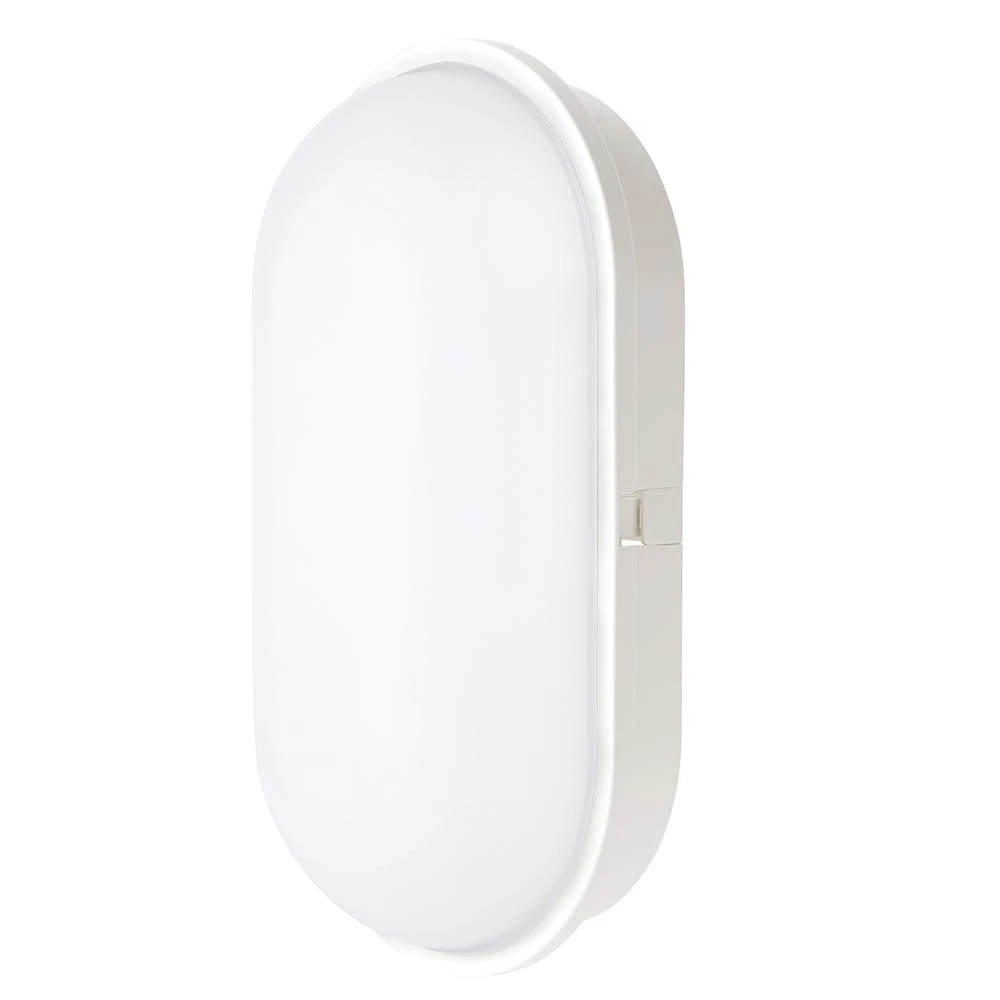

Rugged wall-mounted Bulkhead Light
Baffle lights are the most reliable "all-weather guardians" in industrial and commercial environments—with IP65 waterproof rating, IK10 impact resistance, and a 50,000-hour lifespan, they silently protect every passage in harsh environments such as corridors, garages, ships, and chemical plants.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Baffle lights are the most reliable "all-weather guardians" in industrial and commercial environments—with IP65 waterproof rating, IK10 impact resistance, and a 50,000-hour lifespan, they silently protect every passage in harsh environments such as corridors, garages, ships, and chemical plants.
Features:
Housing adopt the engineering polycarbonate, have the follow performances: weather fastness, waterproof, dustproof Flame retardant:IEC60695-2-12, IEC60695-2-13
| Type | Model | Dimension (LxWxH mm) | CCT (K) | Voltage (V) | Power (W) | Luminous Flux (lm) | Weight (Kg) |
| MFPL1b | 1606U | 157x80x45 | 2700~6500 | 100~127/220~240 | 8 | 900 | 0.089 |
| MFPL1c | 1606V | 192x90x45 | 2700~6500 | 100~127/220~240 | 12 | 1350 | 0.132 |
| Type | Model | Dimension (LxWxH mm) | CCT (K) | Voltage (V) | Power (W) | Luminous Flux (lm) | Weight (Kg) |
| MPL9g | 0506Y | 140x50 | 2700~6500 | 100~127/220~240 | 8 | 900 | 0.127 |
| MPL7c | 0506X | 175x50 | 2700~6500 | 100~127/220~240 | 12 | 1350 | 0.170 |
| Type | Model | Dimension (LxWxH mm) | CCT (K) | Voltage (V) | Power (W) | Luminous Flux (lm) | Weight (Kg) |
| MPL9h | 0506Z | 135x45 | 2700~6500 | 100~127/220~240 | 8 | 800 | 0.102 |
| Type | Model | Dimension (LxWxH mm) | CCT (K) | Voltage (V) | Power (W) | Luminous Flux (lm) | Weight (Kg) |
| MPL10h | 0606Z | 157x80x45 | 2700~6500 | 100~127/220~240 | 8 | 800 | 0.091 |
