Product Overview
KEY FEATURES
Performance Series
| Type | Model | Dim (mm) | CCT | Voltage (V) | P(W) | Lm | Eff. | Label | Wt(Kg) |
| TP6-L | 3206R-L600 | 59x72x600 | 3CCT | 100-240V | 15 | 2025 | 135 | F | 0.18 |
| TP6-L | 3206R-L600 | 59x72x600 | 3CCT | 100-240V | 20 | 2520 | 125 | E | 0.18 |
| TP6-L | 3206R-L900 | 59x72x900 | 3CCT | 100-240V | 25 | 3375 | 135 | F | 0.23 |
| TP6-L | 3206R-L900 | 59x72x900 | 3CCT | 100-240V | 30 | 3800 | 125 | E | 0.23 |
| TP6-L | 3206R-L1200 | 59x72x1200 | 3CCT | 100-240V | 30 | 4050 | 135 | F | 0.28 |
| TP6-L | 3206R-L1200 | 59x72x1200 | 3CCT | 100-240V | 40 | 5000 | 125 | E | 0.28 |
| TP6-L | 3206R-L1500 | 59x72x1500 | 3CCT | 100-240V | 40 | 5400 | 135 | F | 0.36 |
| TP6-L | 3206R-L1500 | 59x72x1500 | 3CCT | 100-240V | 50 | 6300 | 125 | E | 0.36 |
Superior Protection
IK08 impact resistance and IP65 ingress protection, making it indestructible against physical damage and harsh elements.
Durable PC Housing
Constructed from high-quality Polycarbonate material, ensuring long-lasting durability in demanding environments.
Flexible CCT & Power
3 selectable color temperatures (2700K-6500K) and 3 power options for ultimate lighting flexibility.
.
Linkable Design
Can be linked in series of up to 6 units, simplifying installation and creating continuous lines of light.

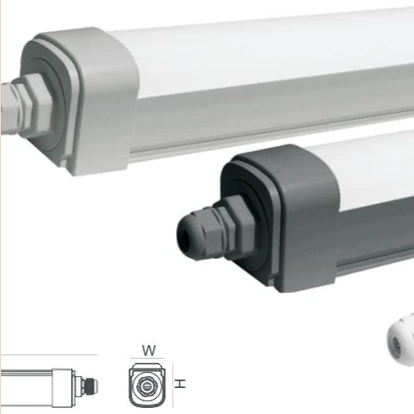

LED Tri-proof Light Structure & Installation
Robust Construction
Durable PC housing with integrated end caps for a seamless, protected design.
Easy Linking & Mounting
Built-in connectors allow simple series linking and secure mounting to various surfaces.
Max. 6 Units Linkable
Supports up to 6 units in series, perfect for creating continuous lines in corridors or aisles.
