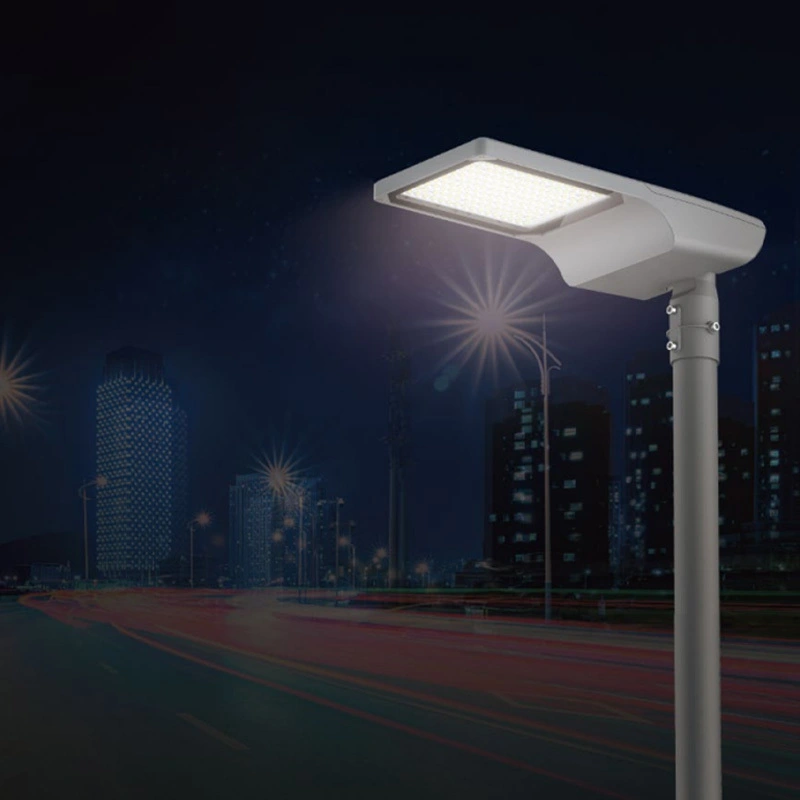

IP66 PRO SERIES LED Street Lights High Efficacy 180lm/W
Product Features
-
Wattage Range: 30W - 240W
-
High Efficacy: 180 lm/W
-
Optical System: Imported optical polycarbonate lens with IESNA Type II and Type III distributions
-
Environmental Protection: IP66 / IK08 rated
-
Color Temperature Options: 2700K, 3000K, 4000K, 5000K, 5700K, 6500K
-
Zero Light Pollution: ULOR = 0 (no upward light output)
-
Durable Construction: UV-resistant, yellowing-resistant thermosetting polyester spray surface
-
Vibration Resistance: Meets 3G vibration test standards
Light distribution description
Can be used in narrow aisles/alleys/sidewalks, etc
Can be used on wide roads or parking lots, etc.
LED Technology
Made of famous brand high-efficiency lamp beads, and the lenses adopt SMD2835, SMD3030 and SMD5050 lamp beads.
Lens full light cut design, ULOR=0.
Structure and Dimensions
The back cover can be opened for maintenance, but recommend professional engineers to repairIn lighting design, a comfortable light experience is essential. Our "Anti-Glare Microprismatic Lens" utilizes advanced microprismatic technology to effectively reduce glare, providing you with a soft
and even illumination.
Product Dimensions
| Wattage Range | Length (L) | Width (W) | Height (H) | Thickness |
|---|---|---|---|---|
| 30W-60W | 399mm | 518mm | 182mm | 89mm |
| 70W-120W | 455mm | 574mm | 214mm | 89mm |
| 140W-240W | 514mm | 633mm | 247mm | 89mm |
Product Line Art
intelligent control
The luminaire is equipped with a NEMA or ZHAGA lamp holder, allowing for sensing and dimming control through sensors and single-lamp controllers.
